Rhino | Thunderbolt Ironworks TGIX

Actual products may vary slightly from images shown due to lighting conditions, screen settings, or minor manufacturing updates. When multiple options are available, such as size, color, hardware, or lock type, the images may not reflect every configuration.

Rhino Metals - Thunderbolt Series (Ironworks)



Special OrderAvailable to order — contact us for lead time

Your build

Key Features

Protection Level Enhanced Protection
Security Level 8
Fire Rating 160 min at 1400°F
Capacity Select a size to view
Weight Select a size to view
Made in USA Yes
Warranty Limited Life-Time

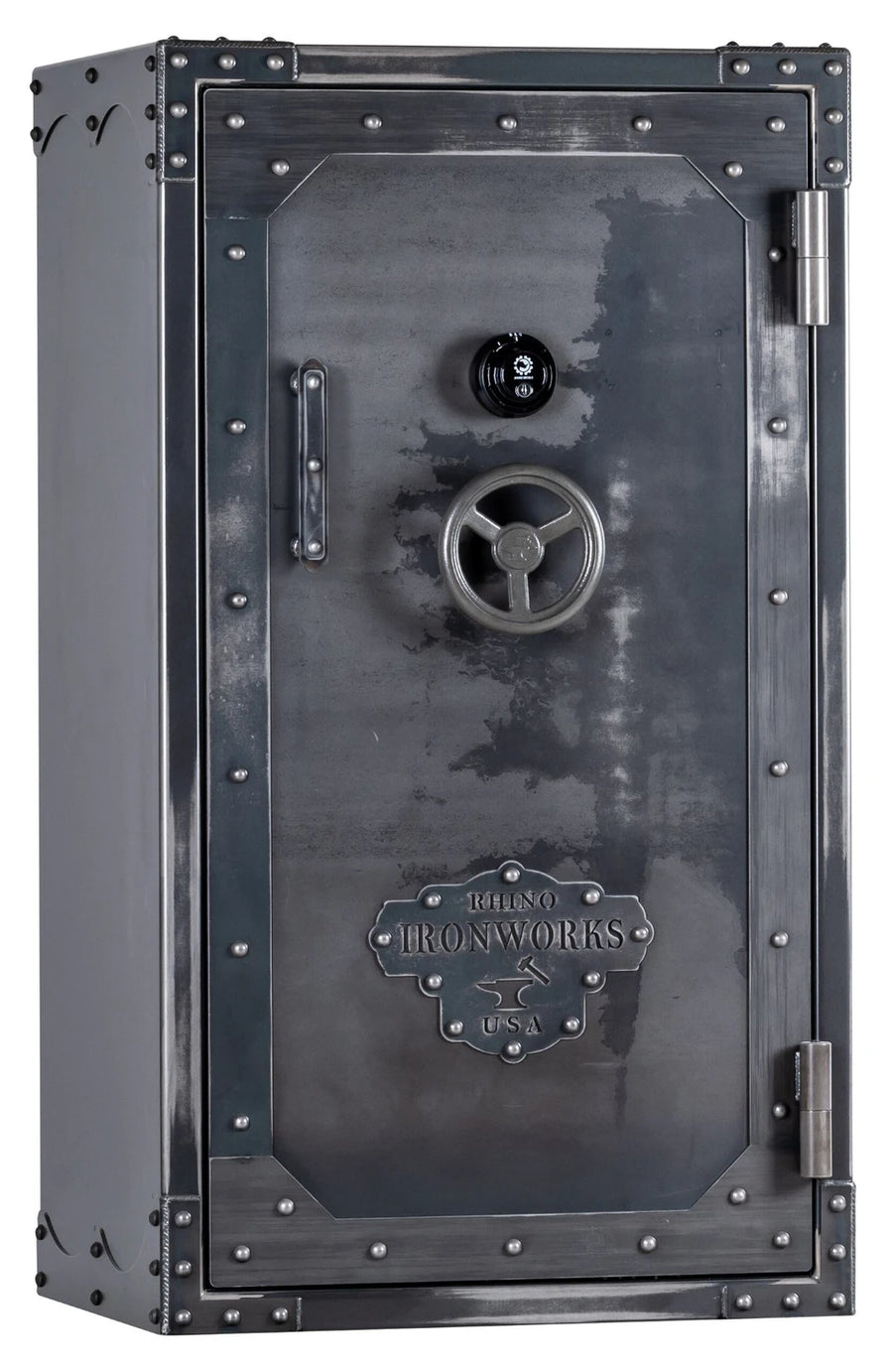

Rhino | Thunderbolt Ironworks TGIX

Rhino Metals - Thunderbolt Series (Ironworks)

Choose your configuration

Current Price
If your collection has outgrown the point where you are willing to compromise on the body, this is where the Rhino line ends. The 7 gauge body is roughly twice the thickness of the 12 gauge used further down the lineup. That difference is what slows a cutting or prying attempt. This sits at the flagship position in Rhino's residential range. What you gain in resistance you pay for in placement, since the largest model lands at 1,608 pounds empty.

Who This Safe Is Best For — and When to Consider More

Choose this model if:

Choose this if you want the heaviest body Rhino makes and you have a ground-floor location that can take the weight. It also makes sense if your collection includes items that would be difficult to replace and you would rather stop second-guessing the container. The hand-antiqued finish is the reason to pick Ironworks over the standard line, since protection specifications are identical between the two.

Best For:

You are protecting a collection that has grown past the point where a mid-tier body feels adequate, and you would rather not revisit the decision. You have a ground-floor location in mind, or you are willing to plan around the weight. You care about how the safe looks in the room, because it will be visible rather than hidden in a basement.

Not Ideal For:

This is more safe than you need if you are storing a handful of firearms and some documents. It is also wrong if your only location is above the ground floor without a structural assessment. The same applies if the delivery path involves a turn we cannot clear. If certified tool-attack resistance is your requirement, no Rhino product carries a UL TL rating.

What Makes the TGIX Different

You can specify a UL listed mechanical lock or a UL listed electronic lock, and the body carries a UL Certified RSC rating. A ball bearing drill plate sits over the lock, which spins under a drill bit instead of allowing a clean bite. Behind that, a spring-loaded relocker fires if the lock is punched or forced, deadbolting the mechanism independently. The gear-driven F-4 anti-tamper clutched handle spins free under force rather than transmitting it to the boltwork.
The body is 7 gauge steel, roughly three sixteenths of an inch, which is the heaviest gauge Rhino builds. Remember that gauge numbers run backward: a lower number means thicker steel, so 7 gauge is substantially heavier than the 12 gauge used at the mid tier. Thicker steel takes longer to cut and resists deformation when someone works at a corner with a pry bar. A full coverage fire lining runs through the door frame as well as the body.
The patented SafeX system replaces conventional boltwork with Grade 8 anchor studs mounted in the outer door frame. When the door closes, those studs pass into the door, and a steel plate inside the door slides behind the rim of each stud. The result is a door that is mechanically interlocked with the frame rather than held by bolts alone. In practice this changes what a pry attack has to overcome, because prying the door edge pulls against the frame itself.

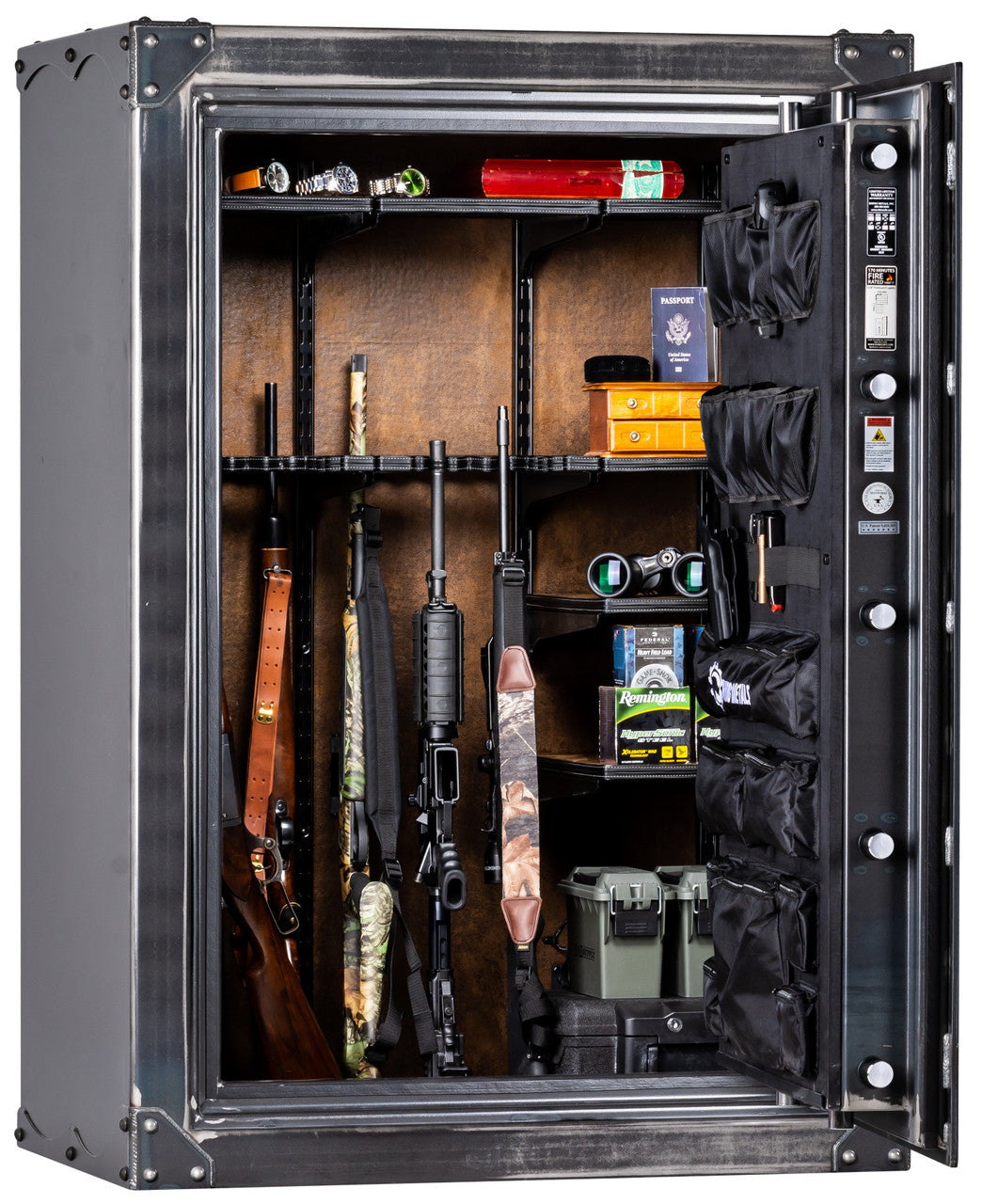

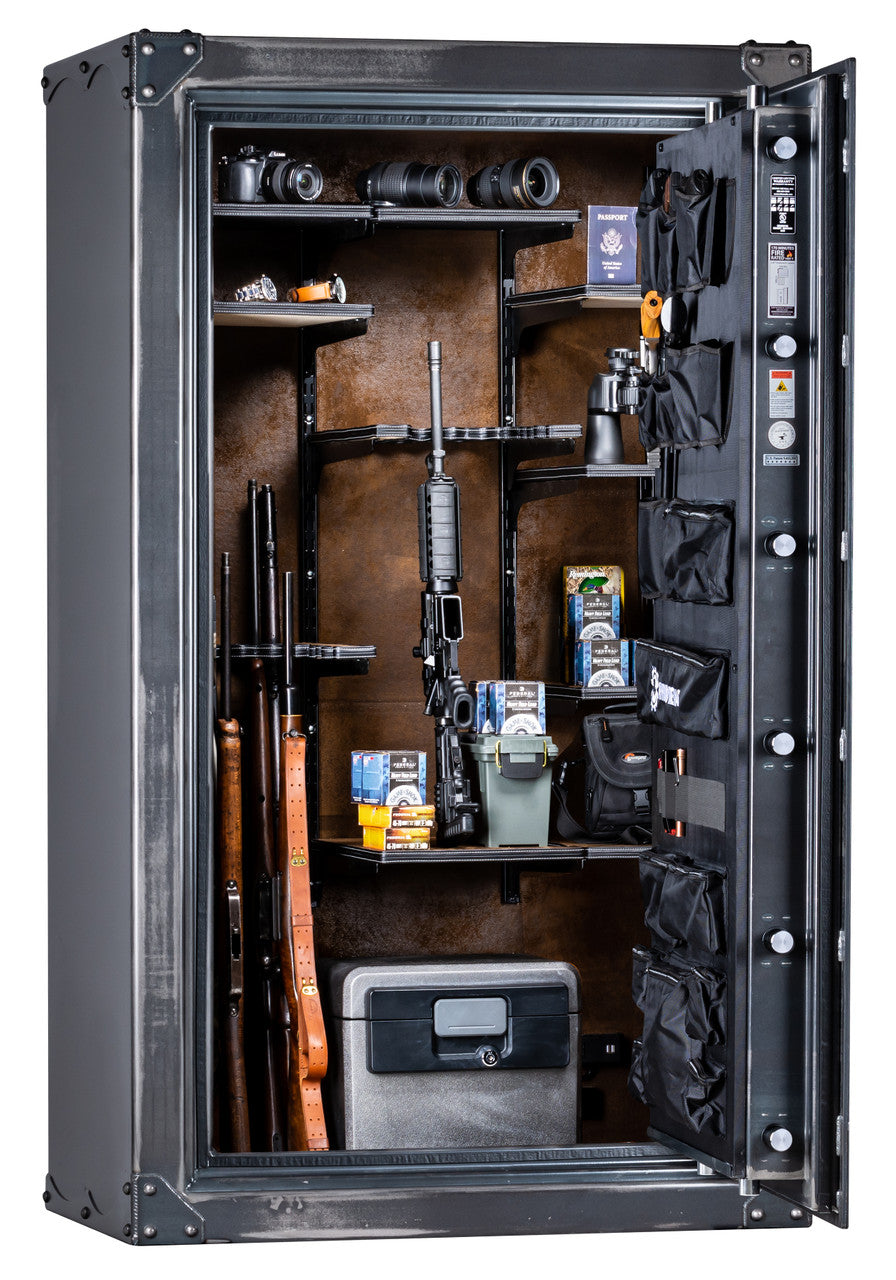

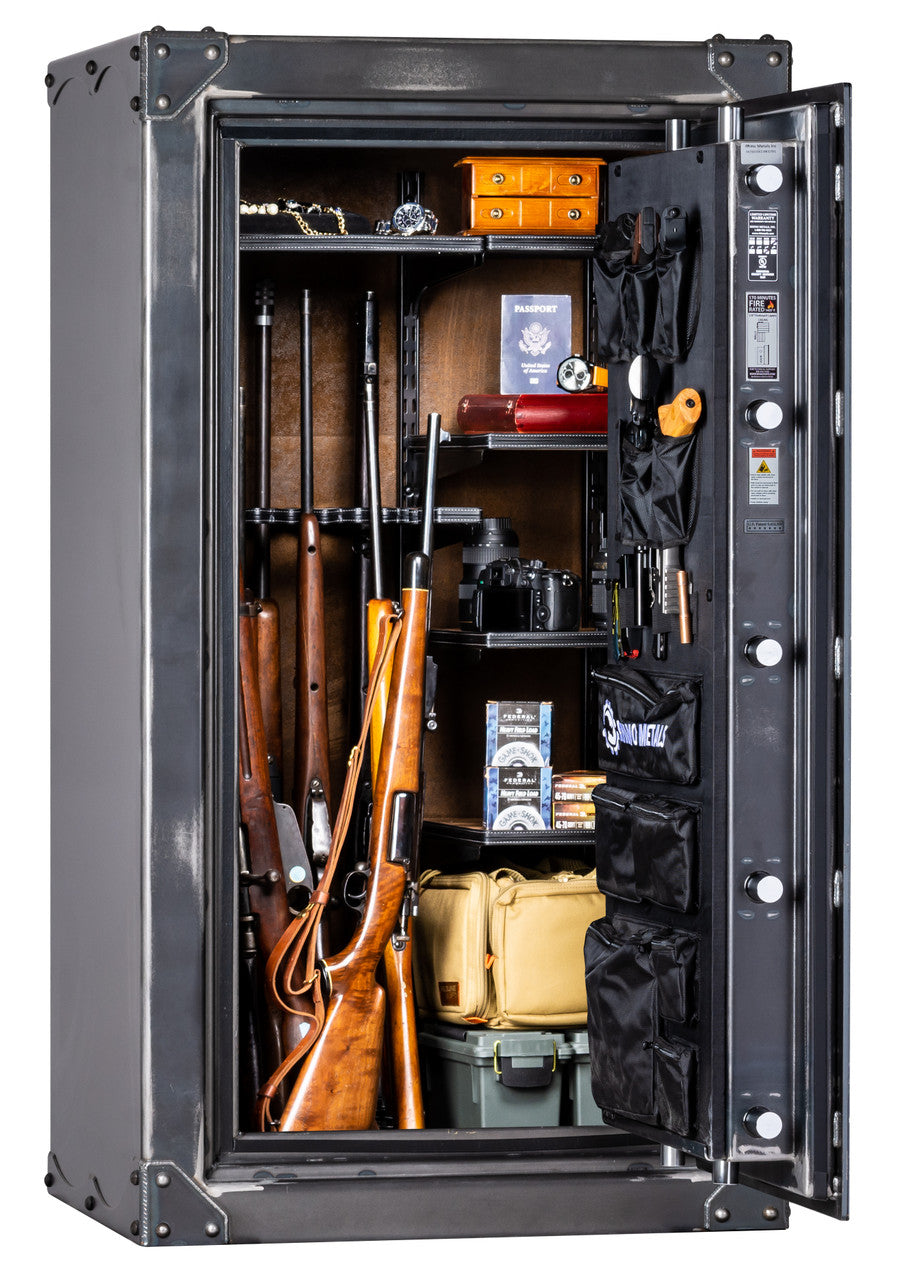

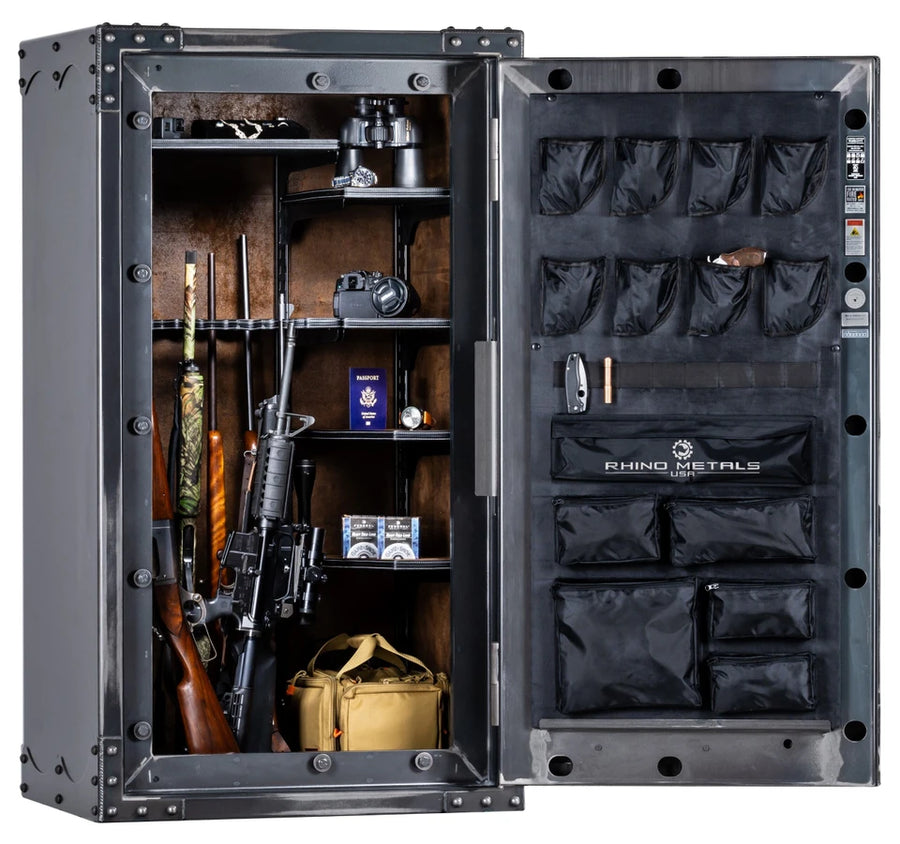

Rhino | Thunderbolt Ironworks TGIX open view
The Rhino Vector interior arrives configured for long guns with adjustable shelving rated to 75 pounds per shelf. A deluxe door organizer carries handgun holders and pockets on the inside of the door, which keeps sidearms and documents off the shelves. Factory LED lighting and an internal electrical and USB outlet come installed, and an electric dehumidifier is included. Gun capacity figures are an estimated maximum, and optics or thick stocks will reduce what actually fits.
The Ironworks finish is applied by hand, so no two doors come out identical. External hinges let the door open a full 180 degrees. That matters more than it sounds when the safe sits in a corner and you need the door organizer. A pull handle and floor anchoring hardware ship with the safe. The finish process adds weight over the standard textured line without changing any protection specification.

Security Construction & Burglary Protection

Resistance at this level comes from three things working together: body thickness, the door-to-frame interlock, and weight. The 7 gauge body takes real time to cut. The SafeX anchor studs mean prying the door edge works against the frame rather than a row of bolts. At 1,190 to 1,608 pounds, moving the safe intact stops being an option for anyone without equipment. What we see in Atlanta break-ins is that time is the constraint.

Highlight

A 7 gauge body, a Grade 8 anchor stud interlock, and a ball bearing drill plate over a UL listed lock.
Learn More

Certified Fire Protection & What It Means

The 160-minute rating at 1400 degrees is the longest Rhino publishes, and it comes from a standardized furnace test rather than a house fire. What the test measures is how long the interior stays below a threshold that would damage paper. A gypsum fire barrier sits between the steel body and the interior. A heat-activated seal in the door expands to close the gap between door and frame. A ground-floor interior room does better than a spot against an exterior wall, which is something we assess on every install.

Highlight

160 minutes of certified fire protection at 1400 degrees, with a heat-activated door seal and a full coverage fire lining in the door frame.
Learn More

Lock Type & Access Options

You choose between a mechanical dial and an electronic keypad, and both carry UL listing. An electronic lock opens faster and handles multiple users more easily, which matters in a household where more than one person needs access. A mechanical dial needs no batteries and does not care about temperature, which some people prefer for a safe they open rarely. Either way, the clutched handle protects the boltwork if someone forces the handle instead of the lock.

Highlight

A 180-degree door opening, a deluxe door organizer, LED lighting, an internal outlet, and an included dehumidifier.
Learn More

Interior Storage, Shelving & Organization

Living with this safe is mostly about the door. The organizer holds handguns and documents where you can reach them without moving long guns, and the 180-degree opening means you get to all of it. Shelving adjusts as your storage changes, rated to 75 pounds per shelf. The included dehumidifier matters in Georgia humidity, and we recommend running it year-round rather than seasonally. Capacity figures assume bare rifles, so plan on fewer than the published number once optics and slings are on.
The Rhino Vector interior arrives configured for long guns with adjustable shelving rated to 75 pounds per shelf. A deluxe door organizer carries handgun holders and pockets on the inside of the door, which keeps sidearms and documents off the shelves. Factory LED lighting and an internal electrical and USB outlet come installed, and an electric dehumidifier is included. Gun capacity figures are an estimated maximum, and optics or thick stocks will reduce what actually fits.

Installation, Placement & Bolting Down

Installation planning often determines long-term satisfaction. Before anything ships we walk your delivery path, measuring doorway width and any hallway clearance or turn that a 1,600 pound unit has to clear. Ground floor over slab is the simple case. Anything above grade needs a look at floor structure before we commit to a date. We anchor the safe at its final placement location, because anchoring is what stops a safe from being tipped or walked out even at this weight.

One of the simplest ways to increase resistance is proper anchoring.

Highlight

We deliver and install every safe with our own crews, and a unit at this weight is routine work for them rather than a special case.
Two workers guide a shrink-wrapped safe on a skid steer beside a house on a dirt lot

Is This Protection Level Enough for Your Situation?

The heaviest body Rhino builds, finished by hand

If your collection has outgrown the point where you are willing to compromise on the body, this is where the Rhino line ends. The 7 gauge body is roughly twice the thickness of the 12 gauge used further down the lineup. That difference is what slows a cutting or prying attempt. This sits at the flagship position in Rhino's residential range. What you gain in resistance you pay for in placement, since the largest model lands at 1,608 pounds empty.
Step Up If:There is nothing above this in the Rhino line, so stepping up means leaving the brand. If your situation genuinely calls for certified tool-attack resistance, that means a UL TL-rated safe, and we carry those in stock at our showrooms. That conversation usually starts when insurance requires a specific rating or when the contents pass a value threshold your carrier names.
More Than Needed If:If you are storing a modest number of firearms with no single irreplaceable item, this is more body than your situation calls for. The mid-tier 12 gauge safes in the line will handle a common residential burglary and cost considerably less to place. Buying down here is a reasonable decision, not a compromise.

Rhino Metals TGIX

Technical Specifications

Models: TGIX6033 / TGIX6636 / TGIX7241

TGIX6033 - Medium
Exterior Dimensions
60 x 33 x 27
Weight
1190 lbs
Gun Capacity
Up to 38 long guns

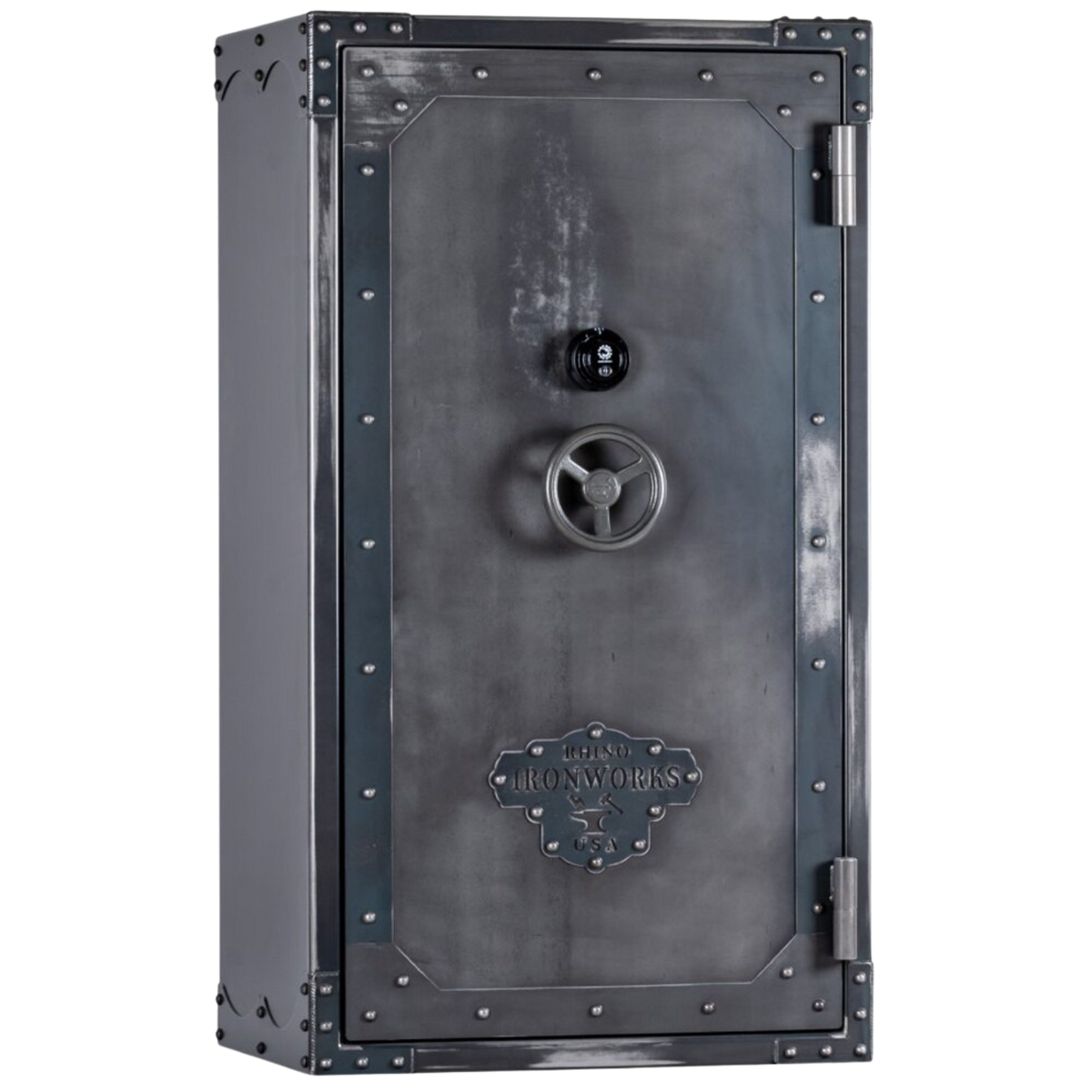

TGIX6636 - Large
Exterior Dimensions
66 x 36 x 27
Weight
1363 lbs
Gun Capacity
Up to 42 long guns

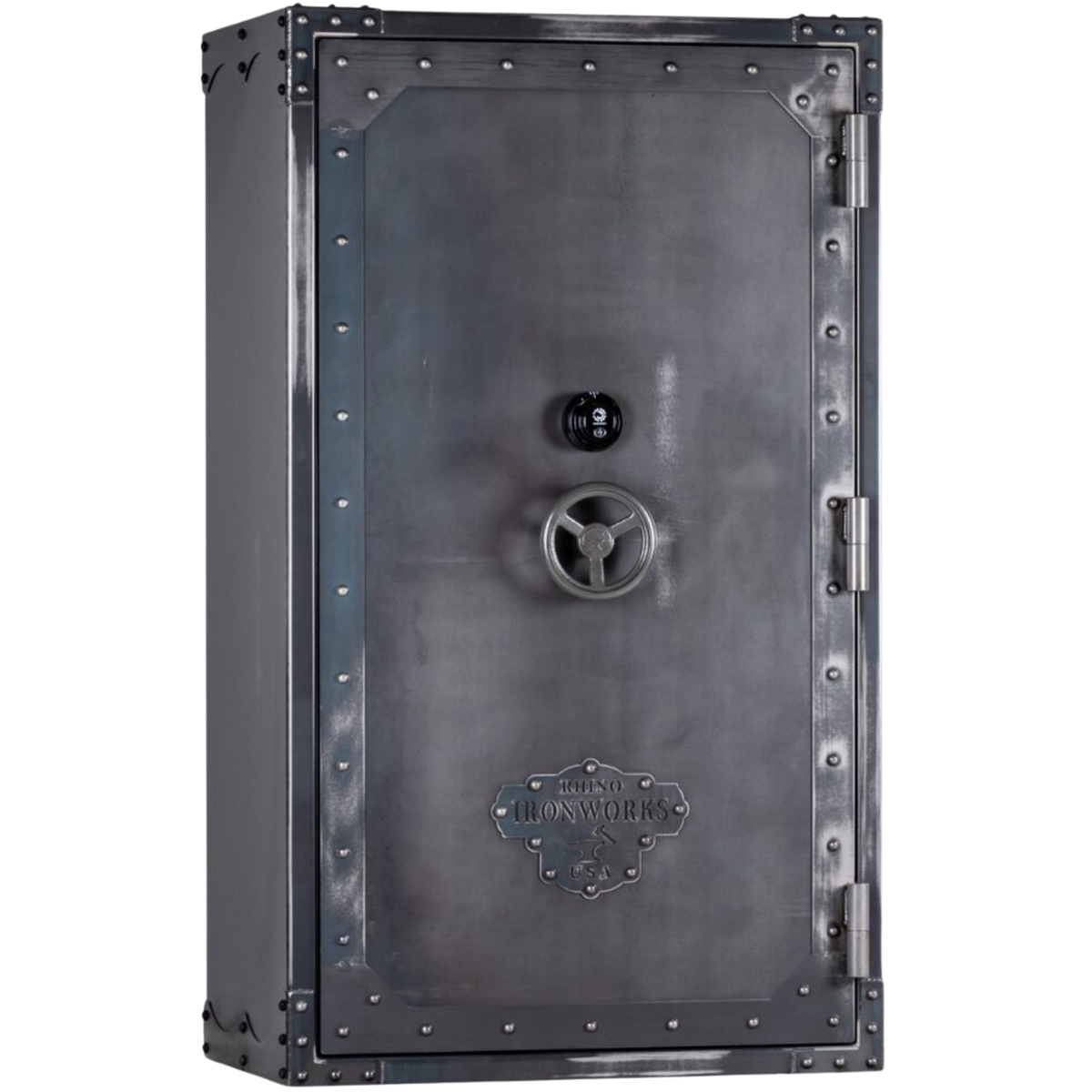

TGIX7241 - X-Large
Exterior Dimensions
72 x 41 x 27
Weight
1608 lbs
Gun Capacity
Up to 51 long guns

Frequently Asked Questions

Is heavier steel really what separates this from a standard gun safe?
Heavier steel is the real difference: this safe carries a 7 gauge body where most standard gun safes use 12 or 14 gauge. Thicker steel resists cutting and prying longer, which buys time during a forced entry attempt. What we see is that gauge matters most once anchoring is already handled.
Does a higher gauge number mean thicker steel?
Gauge runs backward, so a lower number means thicker steel. A 7 gauge body is roughly twice the thickness of the 12 gauge used in mid-tier safes. This trips up more shoppers than any other specification, and we clear it up daily on the showroom floor.
What actually stops someone prying the door open at the edge?
Grade 8 anchor studs in the outer frame pass into the door, and a steel plate inside slides behind each stud as it closes. Prying the edge then works against the frame itself rather than boltwork. In our experience pry attacks are the most common method we see on residential safes.
What does it take to get a 1,600 pound safe into a house?
It takes a measured delivery path, equipment rated for the weight, and a floor that can carry it. We use stair climbers rated to 1,500 pounds and we walk the route before scheduling. The mistake we see most often is a customer measuring the doorway but forgetting the turn at the end of the hallway.
Is the hand-antiqued finish worth paying for?
The Ironworks finish costs more and adds weight, and it changes nothing about protection. The specifications are identical to the standard Thunderbolt. If the safe will be visible in a room you use, the finish is worth it. When it is going in a basement, we tell people to save the money.
