ISM - Ruby Series

$6,256.00
Stocking ItemWe stock this — Quick Delivery

Choose Your Size:

UV251916: 32″×26″×27″ (H×W×D)
UV251916: 32″×26″×27″ (H×W×D)
UV342018: 41″×27″×29″
UV342018: 41″×27″×29″
UV462018: 53″×27″×29″
UV462018: 53″×27″×29″
UV592018: 66″×27″×29″
UV592018: 66″×27″×29″
UV592023: 66″×27″×35″
UV592023: 66″×27″×35″
UV633218: 70″×39″×29″
UV633218: 70″×39″×29″
UV683626: 75″×43″×37″
UV683626: 75″×43″×37″
Selected None selected

Key Features

Protection Level Maximum Protection
Security Level 10
Fire Rating 120 min at 1850°F
Capacity Up to 0 guns
Weight 1370 lbs
Made in USA No
Warranty Limited Life-Time
ISM | Ruby | Level 9 Security | 120 Minute Fire Protection

ISM - Ruby Series

UV251916: 32″×26″×27″ (H×W×D)

Current Price $6,256.00
When the safe will sit somewhere an intruder can reach more than the front of it, the Ruby is the model that accounts for that. The UL TL-30x6 listing means the laboratory ran the thirty minute tool attack against every face of the safe, and ISM builds for it by carrying reinforced steel bars and the patented anti-penetration alloy grid through the body as well as the door. This sits in the upper half of ISM's UL listed range, above the door-face rated models and below the torch rated ones. You are paying for the surfaces nobody thinks about until the safe is already in the room.

Who This Safe Is Best For — and When to Consider More

Choose this model if:

Choose the Ruby if the safe will sit where its back, sides or top are reachable and unobserved, and you want that exposure covered by certification rather than hope. It is the right call for stockrooms, garages, detached shops and basements, and for any placement where an intruder would have time to work. Choose it also if the contents are valuable enough that the difference between a door-face rating and a six-sided one is not a line item you want to guess at.

Best For:

Choose the Ruby if the safe's location leaves its back, sides, top or bottom reachable, and if the contents justify certified resistance rather than heavy construction alone. It fits you if the safe will stand free in a stockroom, a garage, a detached building or a basement where someone could work uninterrupted. We also see it chosen when a business has more than one person with keys to the room but only one who should reach the contents.

Not Ideal For:

The Ruby is more certification than you need if the safe will be fully enclosed, anchored into a corner, and inside a space that is occupied or monitored. It is also not the answer if fire is your dominant concern, because the fire rating here is the same 2 hour factory figure carried on lighter models. If the contents call for resistance to cutting torches, this listing does not cover that and the next model up does.

What Makes the Ruby Different

Two UL listed locks control the Ruby: a combination lock you can specify as mechanical or digital, and a high security key lock. Both drive three-way active boltwork through a double-action mechanism, extending bolts into three sides of the frame. Behind each lock sits glass plate relocking protection, which fires independent relockers if the lock is punched or drilled, holding the bolts in place after the lock is gone. Two locks also means two people can be required to open it, which is worth thinking about in a business.
Body and door share the same recipe: outer and inner steel plates, reinforced steel bars, and a monolithic casting of specialized concrete blended with ISM's anti-penetration composite. No steel gauge is given, so any number you see quoted for this model did not come from the factory. What the construction does tell you is where the mass went, because the interior volume of a Ruby is smaller than its exterior suggests. That difference is the barrier.
What makes six-sided certification possible is that ISM does not treat the door as the only surface worth arming. The same monolithic casting of specialized concrete and anti-penetration composite that protects the door runs through the body, and reinforced steel bars are cast into it. The patented alloy grid appears on both body and door rather than the door alone. That is why the Ruby weighs more than a door-face rated safe of the same interior volume, and it is the whole reason the rating carries the x6.

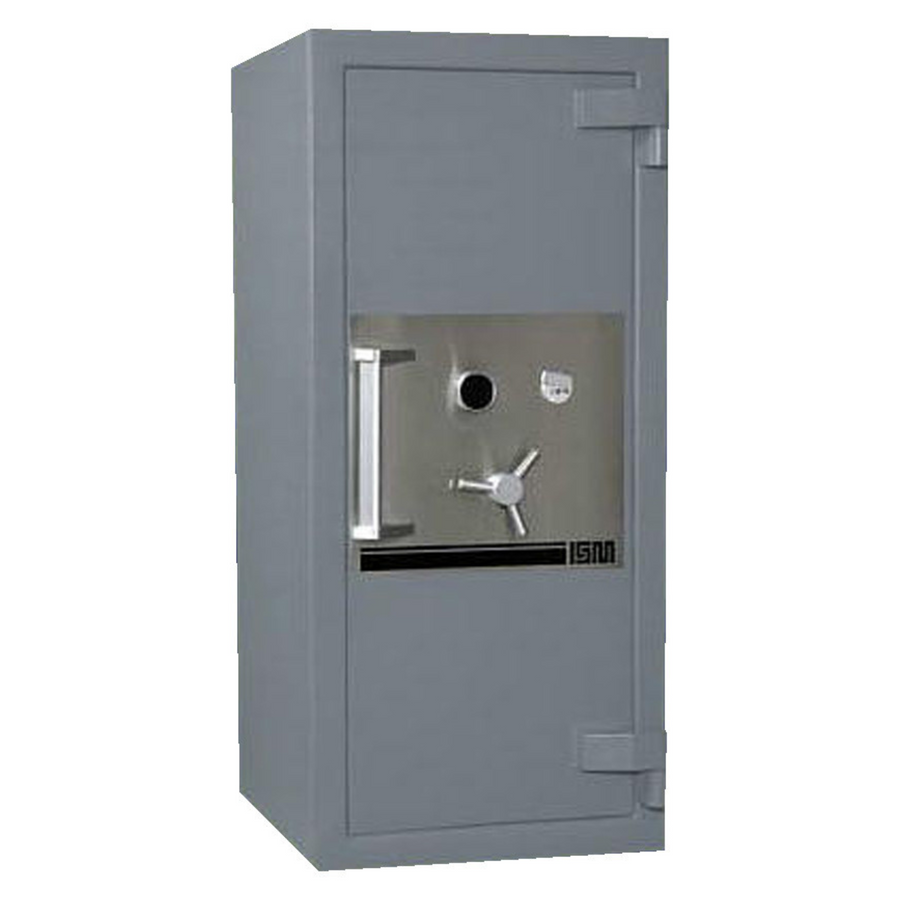

ISM | Ruby | Level 9 Security | 120 Minute Fire Protection open view
Adjustable removable shelves run one to four depending on size, and published interior volume spans 4.4 to 36.8 cubic feet. An optional connection hole allows the safe to be tied into a monitored alarm. Because a six-sided rating puts more material around the cavity, the usable interior is noticeably smaller than the exterior footprint implies, and that catches buyers out more often than any other spec on the sheet. Work from the interior figure, not the outside dimensions.
Seven sizes run 31.5 to 74.5 inches tall and 25.5 to 42.5 inches wide, with depths from 27 to 37 inches. Add two inches to depth for a three spoke handle or 3.55 inches for a pull handle before you measure a doorway. Door swing projections are published per size and range up to 81 inches at 90 degrees on the largest unit, which is a genuine constraint in a narrow stockroom. We map the swing during the pre-delivery review.

Security Construction & Burglary Protection

A UL TL-30x6 listing means the thirty minute tool attack was run against all six surfaces, so the top, bottom, back and sides are held to the same standard as the door. That matters because attackers go around a door when they have room and time to do it. The Ruby answers that by carrying reinforced steel bars and the anti-penetration alloy grid through the body, not just the door, and by relying on a cast composite mass rather than plate thickness. Where we see six-sided ratings earn their money is in detached buildings and after hours stockrooms, the places where nobody walks past.

Highlight

Six-sided UL TL-30x6 certification, reinforced steel bars and the anti-penetration alloy grid running through the body as well as the door, and glass plate relockers behind both locks.
Learn More

Certified Fire Protection & What It Means

The Ruby carries a 2 hour factory fire rating against a 350 degree interior threshold, the point at which paper begins to scorch. That rating came from ISM's own furnace, and the UL listing on this safe covers burglary only. It is worth being clear about the difference, because a burglary certification and a fire certification are separate tests from separate standards and one does not imply the other. What we tell people is to treat the fire figure as a description of how the barrier is built.

Highlight

A 2 hour factory fire rating at a 350 degree interior threshold, tested by ISM rather than certified by an outside body, which is worth knowing when you compare it against a UL fire class.
Learn More

Lock Type & Access Options

The Ruby carries two UL listed locks, a combination lock in mechanical or digital form and a high security key lock, and both have to be satisfied before the door opens. In a business that lets you split control between two people, so no single person can open the safe alone. In a home it usually means one lock for daily use and one that stays with the owner. Decide which pattern you want before you order, because it shapes which combination lock you should specify.

Highlight

Adjustable removable shelving, an optional alarm connection, and a two lock setup that lets you split access between people rather than concentrate it.
Learn More

Interior Storage, Shelving & Organization

Living with a Ruby means working within an interior that is deliberately smaller than the outside suggests, because the six-sided barrier takes the space. Shelves are adjustable and removable, so you can set them around cash drawers, jewelry trays, binders or whatever the mix actually is, and reset them later. Published volume runs 4.4 to 36.8 cubic feet. If you plan to add an alarm connection, order the hole with the safe rather than drilling for it afterward.
Adjustable removable shelves run one to four depending on size, and published interior volume spans 4.4 to 36.8 cubic feet. An optional connection hole allows the safe to be tied into a monitored alarm. Because a six-sided rating puts more material around the cavity, the usable interior is noticeably smaller than the exterior footprint implies, and that catches buyers out more often than any other spec on the sheet. Work from the interior figure, not the outside dimensions.

Installation, Placement & Bolting Down

Installation planning often determines long-term satisfaction. A Ruby weighs between 1,370 and 4,690 pounds, and the six-sided models are dense for their footprint, so the floor question comes up earlier than customers expect on anything above the ground level. Send us photographs and video of the doorways, the hallway corners, the stair landings and the exterior approach, and we will resolve the route before we schedule rather than on the day. Our crews anchor at the final placement location and confirm the swing arc clears whatever is next to it.

One of the simplest ways to increase resistance is proper anchoring.

Highlight

We deliver and install every Ruby with our own crews and our own equipment, so the anchoring, the placement and the door swing are settled before we leave.
Two workers guide a shrink-wrapped safe on a skid steer beside a house on a dirt lot

Is This Protection Level Enough for Your Situation?

Certified on All Six Sides, Not Just the Door


When the safe will sit somewhere an intruder can reach more than the front of it, the Ruby is the model that accounts for that. The UL TL-30x6 listing means the laboratory ran the thirty minute tool attack against every face of the safe, and ISM builds for it by carrying reinforced steel bars and the patented anti-penetration alloy grid through the body as well as the door. This sits in the upper half of ISM's UL listed range, above the door-face rated models and below the torch rated ones. You are paying for the surfaces nobody thinks about until the safe is already in the room.
Step Up If:If what worries you is a cutting torch rather than drills and pry bars, that is a different class of attack and this listing does not cover it. Torch resistance starts one model further up the line, where the casting material itself changes. That step usually makes sense when the contents are bullion, high value inventory, or anything a determined crew would plan around rather than stumble into.
More Than Needed If:If the safe is going into a finished closet, anchored to a slab, in a house that is rarely empty, the six-sided rating is buying you coverage the placement already provides. A door-face TL-30 will give you the same certified thirty minutes where the attack would actually happen, at less weight and less cost. Tell us the room and we will tell you honestly which one fits.

ISM Ruby

Technical Specifications

Models: Section 1 - Series Specifications / ISM UV251916 / ISM UV342018 / ISM UV462018 / ISM UV592018 / ISM UV592023 / ISM UV633218 / ISM UV683626

Section 1 - Series Specifications

ISM UV251916 - Small

Exterior Dimensions
31.5H x 25.5W x 27D
Interior Dimensions
25H x 19W x 16D
Weight
1,370 LBS

ISM UV342018 - Small

Exterior Dimensions
40.5H x 26.5W x 29D
Interior Dimensions
34H x 20W x 18D
Weight
1,800 LBS

ISM UV462018 - Small

Exterior Dimensions
52.5H x 26.5W x 29D
Interior Dimensions
46H x 20W x 18D
Weight
2,220 LBS

ISM UV592018 - Large

Exterior Dimensions
65.5H x 26.5W x 29D
Interior Dimensions
59H x 20W x 18D
Weight
2,670 LBS

ISM UV592023 - Large

Exterior Dimensions
65.5H x 26.5W x 34D
Interior Dimensions
59H x 20W x 23D
Weight
3,040 LBS

ISM UV633218 - Large

Exterior Dimensions
69.5H x 38.5W x 29D
Interior Dimensions
63H x 32W x 18D
Weight
3,550 LBS

ISM UV683626 - X-Large

Exterior Dimensions
74.5H x 42.5W x 37D
Interior Dimensions
68H x 36W x 26D
Weight
4,690 LBS

Frequently Asked Questions

What is three-way boltwork and why does it matter?
Three-way active boltwork drives bolts into three sides of the door frame at once instead of one, so prying at any single edge does not release the door. A double-action mechanism means the bolts move under positive control rather than gravity or spring pressure. In our experience prying is the attack that gets underestimated, not drilling.
Does the UL listing on this safe cover the fire rating too?
The UL listing on the Ruby covers burglary resistance only, and the 2 hour fire figure comes from ISM's own furnace testing rather than an outside certification. Those are separate standards run by separate labs, and holding one says nothing about the other. We flag this on every ISM quote, because the two numbers sit on the same page.
What does the x6 in a six-sided rating actually change?
A six-sided rating means the laboratory ran the same thirty minute tool attack against the top, bottom, back and sides as well as the door. A door-face rating covers only the surface the test hit. What we find is that placement decides whether that difference matters at all.
What is involved in installing a safe over 1,000 pounds?
Every Ruby exceeds 1,000 pounds, so professional equipment stops being optional and floor loading becomes a real question above the ground level. We review photographs and video of the full route before scheduling and anchor the safe at its final position. The obstacle we hit most is a stair landing that will not take the turn.
Can a commercial rated safe like this go in a house?
A TL-30x6 safe installs in a private home as readily as a business, and we place them in residences regularly for jewelry, bullion and collections. The constraints are weight, access route and floor structure rather than anything about the rating. What we usually adjust is the room, not the safe.

Ready to Secure What Matters Most?

Certified fire protection and UL-listed construction for balanced residential storage.

Compare Safes

See how this safe stacks up against similar models.

Current Safe

ISM — Ruby

$6,256.00
Brand
ISM
Model
Ruby
Protection Level
Maximum Protection
Security Level
10 / 10
Country of Origin
Import
