UL TL-30x6 Six-Sided Vault | 120-Min Fire - AMSEC CFX Series

Actual products may vary slightly from images shown due to lighting conditions, screen settings, or minor manufacturing updates. When multiple options are available—such as size, color, hardware, or lock type—the images may not reflect every configuration. Please refer to the product description for available options. If you have questions about a specific product's appearance, contact our team before purchasing.

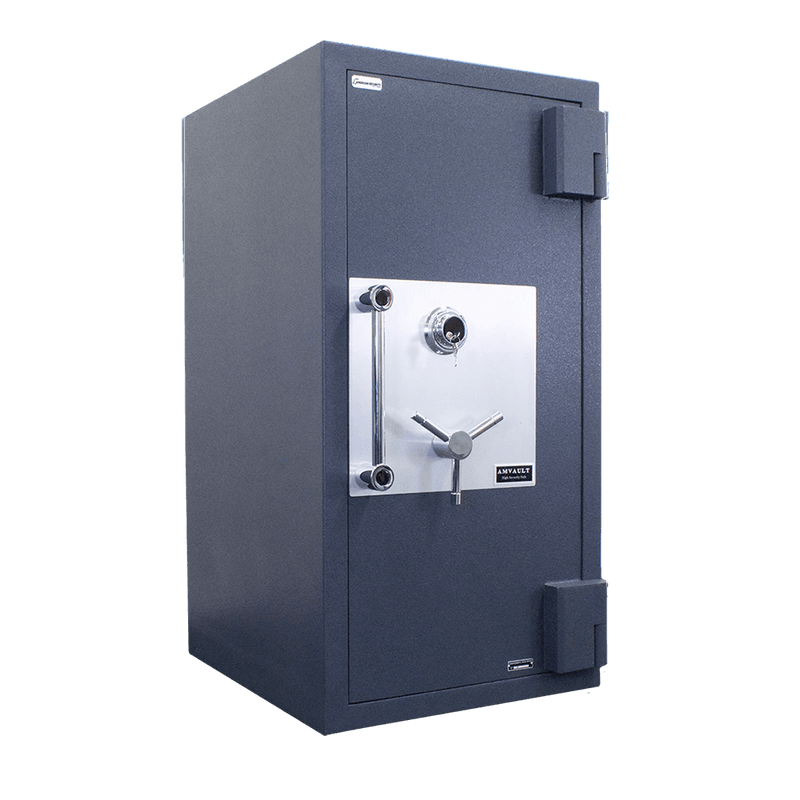

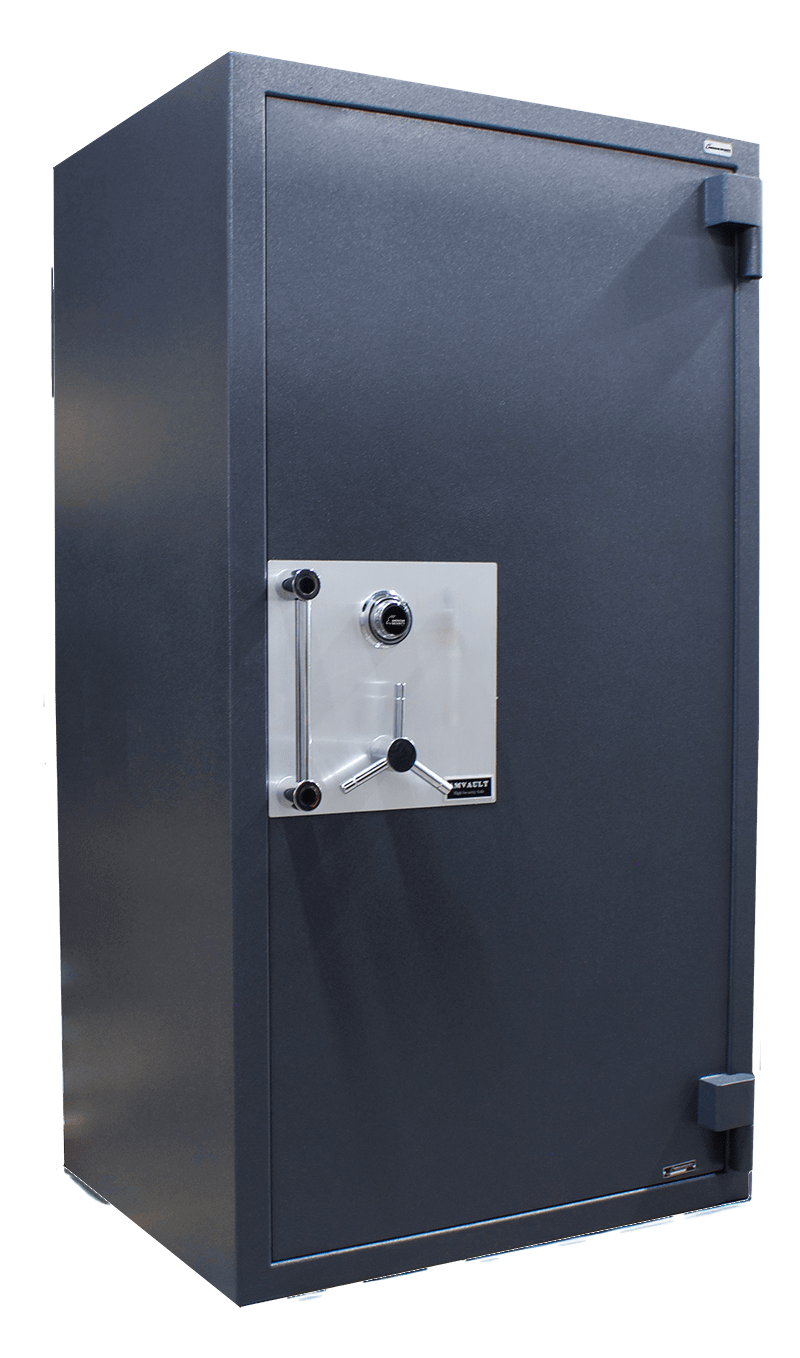

American Security - AMVault CFX Series

$12,165.00 25% Off

$9,123.00

Stocking ItemWe stock this — Quick Delivery

Choose Your Size:

CFX252016 - 31" x 26" x 25.25" (H x W x D)

CFX352020 - 41" x 26" x 29.25"

CFX452020 - 51" x 26" x 29.25"

CFX582820 - 64" x 34" x 29.25"

CFX703620 - 76" x 42" x 29.25"

Selected None selected

Choose Your Color:

Selected None selected

Choose Your Lock:

Selected None selected

Key Features

Protection Level Maximum Protection

Security Level 10

Fire Rating 120 min at 1850°F

Capacity None

Weight 1432 lbs

Made in USA Yes

Warranty Limited Life-Time

American Security - AMVault CFX Series

CFX252016 - 31" x 26" x 25.25" (H x W x D) / Textured Charcoal Gray / Mechanical - Standard

Current Price $9,123.00

This sits at the top of our commercial TL lineup, and it is positioned there for a specific reason: UL TL-30x6 is the only rating in this catalog that certifies resistance to a sustained tool attack on all six sides of the safe, not just the door. A 6-inch multi-layer steel door and 3-inch defense barrier walls, built from high-strength concrete composite enclosed in high-tensile steel, back that certification with real mass and material. Most commercial safes are rated on the door alone, which leaves the top, back, and bottom open to attack once a determined crew gets the safe off its feet. At the Maximum Protection tier, this model is built for jewelry stores, banks, and other operations where that gap is not acceptable.

Who This Safe Is Best For — and When to Consider More

Choose this model if:

Choose this if your inventory or cash exposure genuinely requires six-sided certified tool-attack resistance, and your insurance carrier's coverage for that risk class depends on TL-30x6 construction specifically.

Best For:

If you are protecting high-value jewelry inventory, cash reserves, or other assets where your insurance carrier's coverage depends on six-sided certified construction, this is the model built for that requirement. It also fits operations consolidating multiple lower-rated safes into one vault-grade unit that clears underwriting on every side, not just the front.

Not Ideal For:

If your operation's insurance requirement tops out at a front-rated TL-30 or TL-15 standard, you are likely paying for certification and weight capacity you do not need. If your primary concern is fire protection for records or media rather than tool-attack resistance on cash or valuables, a fire-focused commercial safe will serve that specific need better than a TL-rated vault.

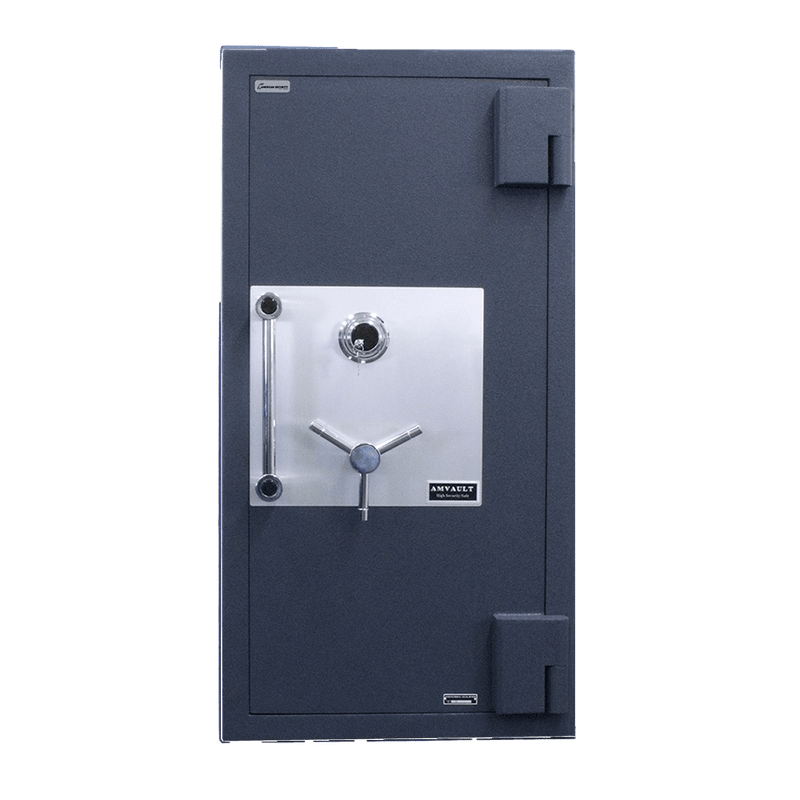

What Makes the CFX TL-30x6 Different

A multi-directional bolt system drives multiple large-diameter locking bolts into the frame on every side of the door, not just top and bottom. Hardened plates sit behind the lock face specifically to defeat drilling attempts aimed at the locking mechanism itself. Multiple relockers back the primary lock, so an attack that disables one layer still has to get past another before the door moves. We look at relocker count specifically when evaluating a safe at this tier, since it is the difference between a lock failure and a door failure.

The door runs 6 inches thick through multiple steel layers, and the walls carry a 3-inch defense barrier made of high-strength concrete composite enclosed in high-tensile steel. That composite-and-steel combination is what earns six-sided certification rather than a door-only rating: drilling, cutting, or torch attacks face the same barrier whether they target the front, the back, or the top. Robust hinges and a thick frame round out the construction, since a certified body does little good if the door itself can be pried or removed. This is heavier, denser construction than a standard commercial burglary safe, and it is priced and sized accordingly.

The lock is buyer-selectable across four UL-listed high-security options: a Combination Lock with Key-Locking Spy-Proof Dial, a Combination Lock with Spy-Proof Dial, an ESL5 electronic lock, or an ESL10 electronic lock with time-delay capability. Multiple relockers back up whichever lock you choose, engaging automatically if the lock or boltwork is attacked directly. Time-delay capability on the electronic options adds a waiting period before the safe can open, which is the detail most underwriters look for on a vault at this tier. For jewelry and banking accounts, that combination of lock choice and time-delay is often what closes the gap between a strong safe and one that actually satisfies a specific carrier's requirement.

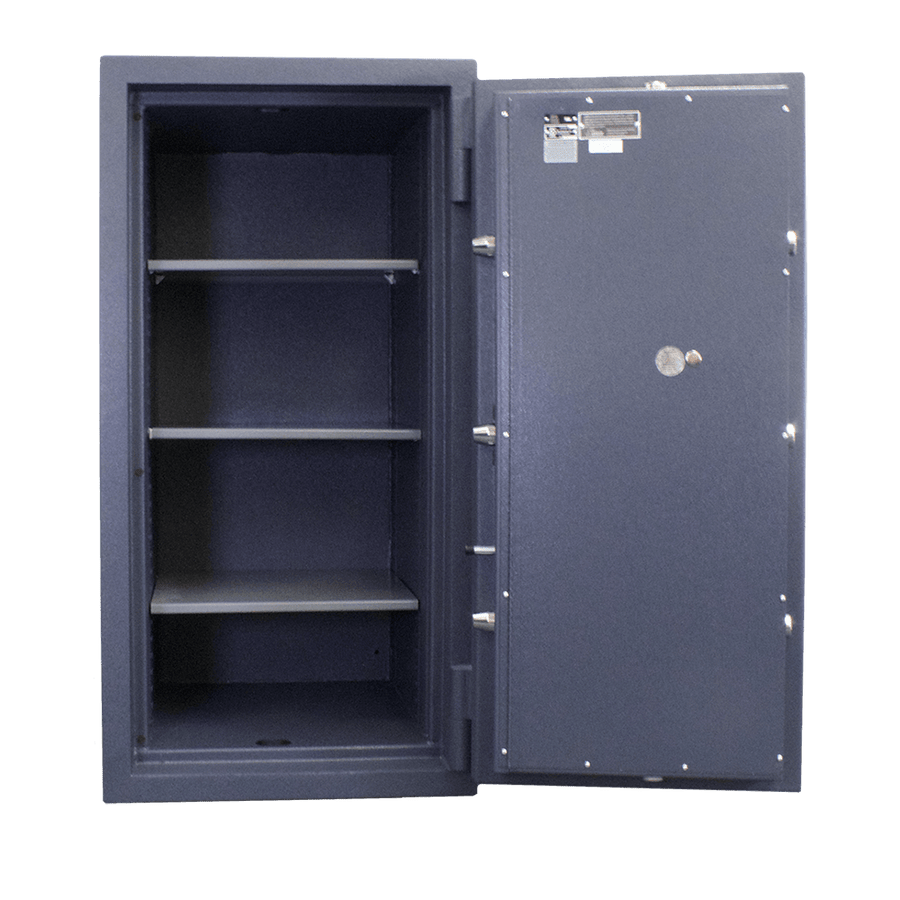

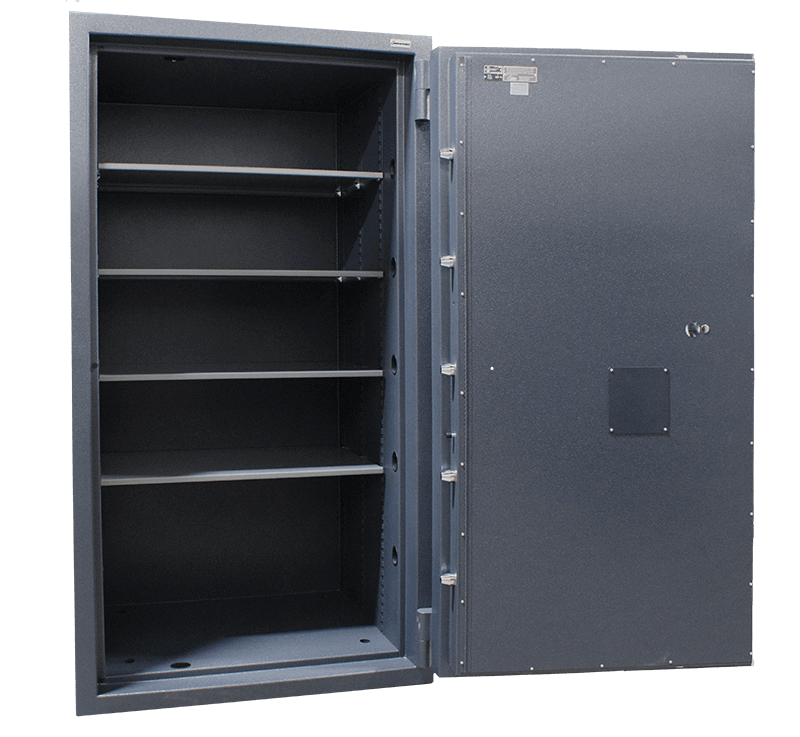

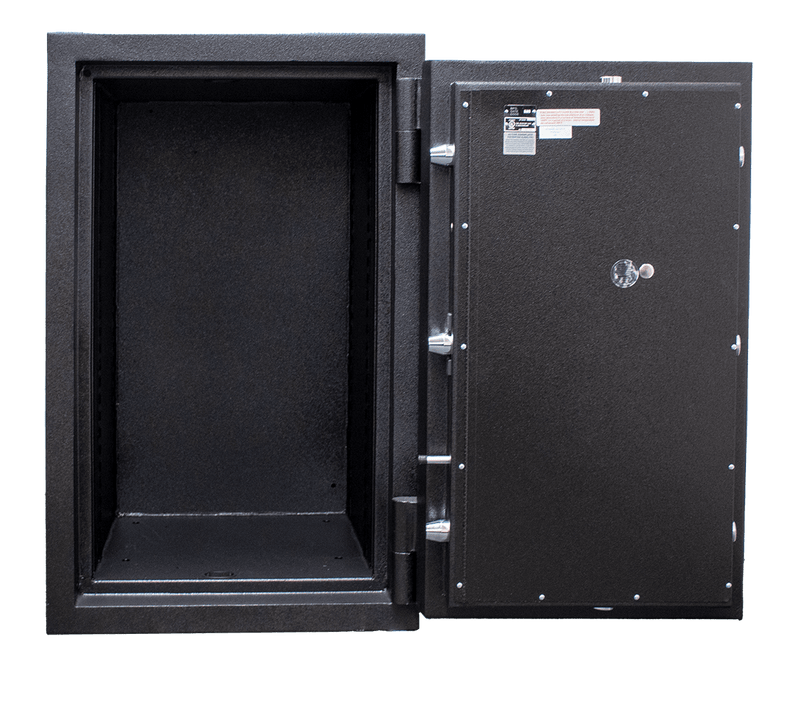

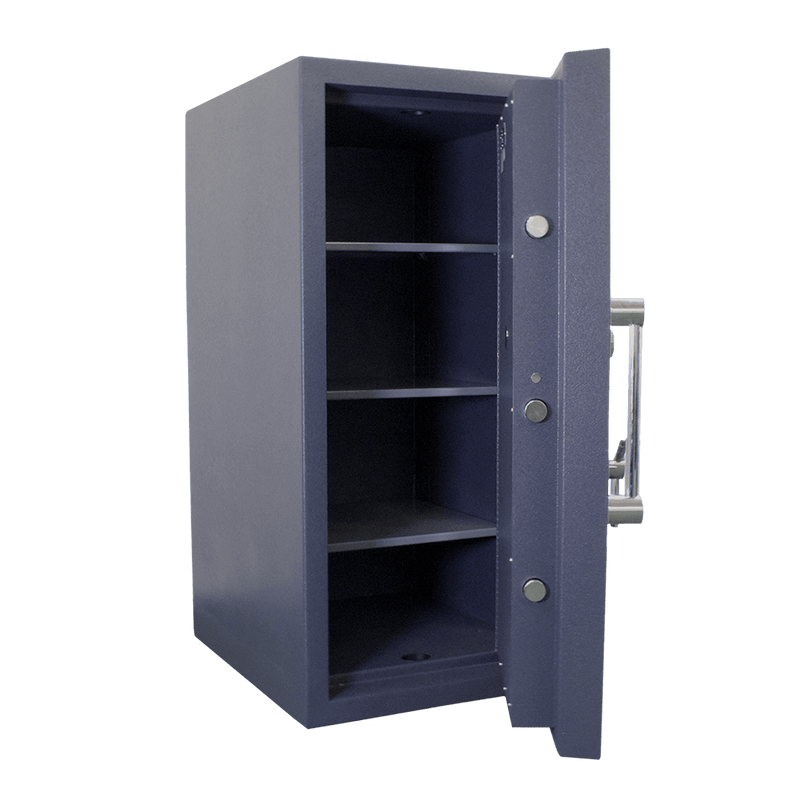

The interior is configurable with adjustable shelving, from a single shelf on the smallest CFX252016 up to four shelves on the CFX582820 and CFX703620, and it can be customized further with jewelry drawers or other fittings. That configurability matters more at this tier than raw cubic footage, since jewelry and cash storage usually needs organized, retrievable space rather than one open compartment. For a bank or jewelry account, the interior layout is typically the last decision made, after the certified construction and lock selection are settled.

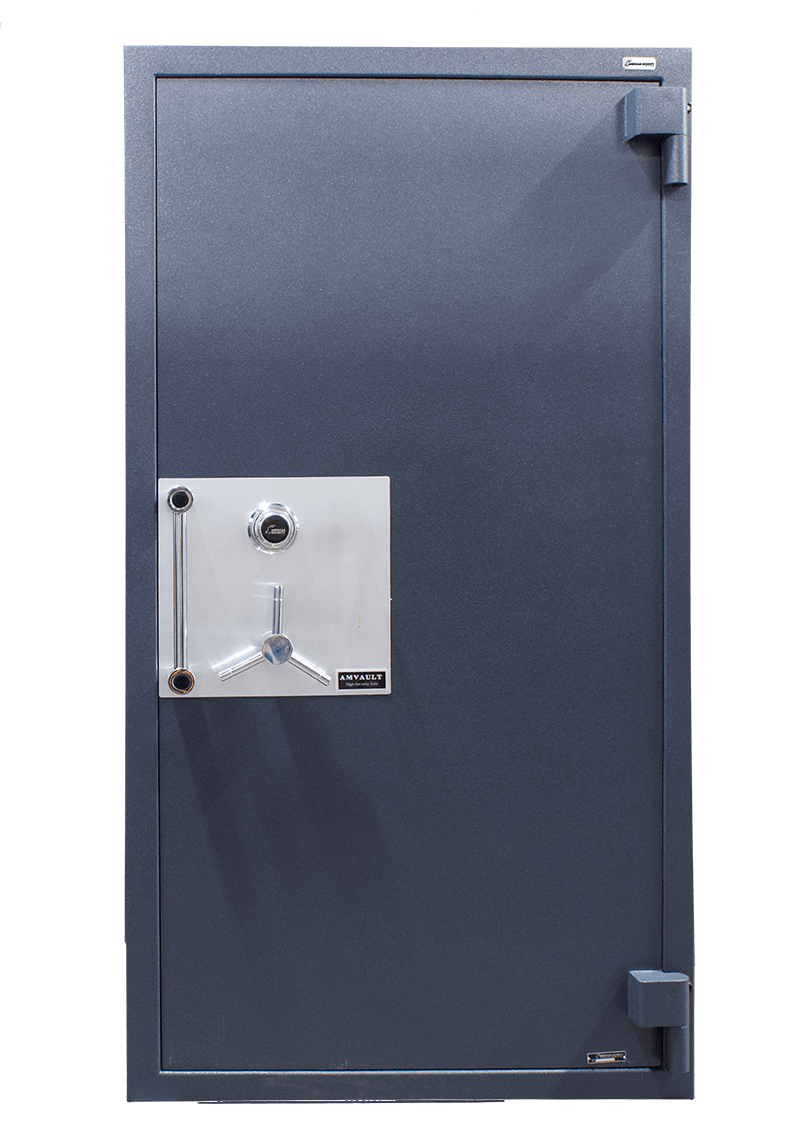

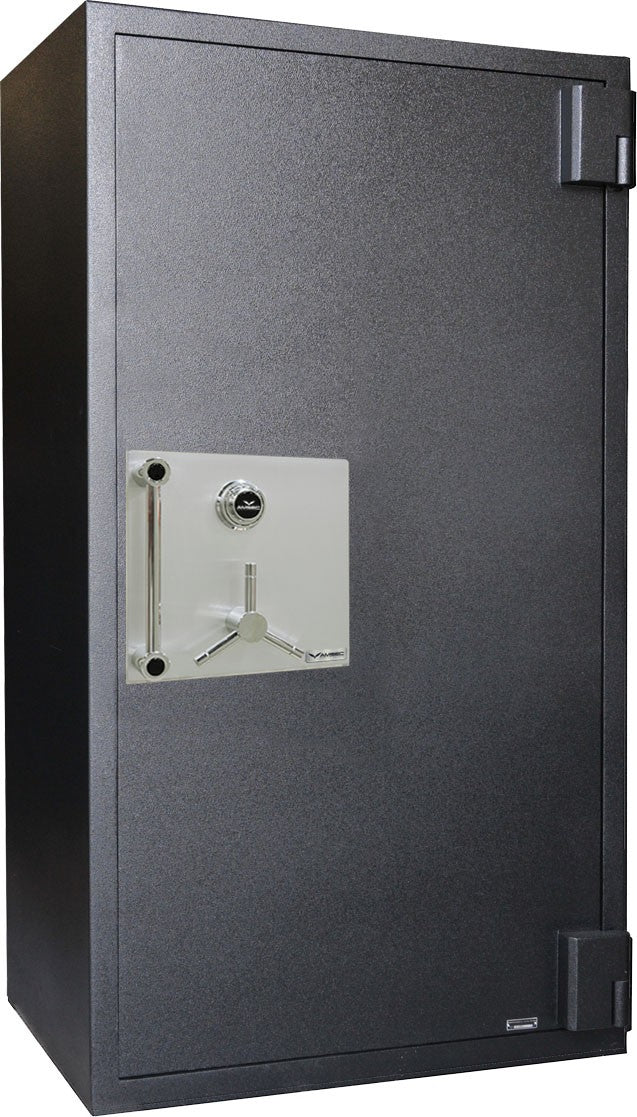

All five sizes share a textured charcoal gray finish with chrome hardware, giving the lineup a consistent look whether you are placing the smallest or largest model. Door clearance scales from 25 inches high on the CFX252016 to a full 70 inches on the CFX703620, so the opening you actually load through depends heavily on which size fits your space. None of the exterior hardware is decorative on a safe this size; hinges, handle, and dial are all load-bearing parts of a certified door assembly.

Security Construction & Burglary Protection

UL TL-30x6 certification means an independent lab attacked this safe with power tools, cutting wheels, and other burglary tools for 30 minutes on every side, not just the door, and it held. The 6-inch multi-layer door and 3-inch composite defense barrier walls are what physically back that testing, so a crew that flips the safe or attacks the back gets the same resistance as one working the front. Multiple relockers and hardened plates behind the lock face add a second layer if the primary lock or boltwork is directly attacked. That six-sided coverage is the entire reason this model exists above the standard commercial TL lineup.

Highlight

UL TL-30x6 certification, a 6-inch multi-layer steel door, and 3-inch composite defense barrier walls make up the core of this model's six-sided tool-attack resistance.

Learn More

Certified Fire Protection & What It Means

The manufacturer states a rating of 120 minutes at 1850°F, but the fire badge does not name UL or ETL as the certifying body the way the burglary rating explicitly does. Until that is confirmed, treat this as a manufacturer-stated fire figure rather than an independently certified one, and do not rely on this model as your primary fire-protection decision if fire endurance for records or media is your main concern. If fire protection is the priority, our team can point you toward a model with an explicitly certified fire rating instead.

Highlight

The manufacturer states 120 minutes at 1850°F, but does not name a certifying body for that figure, so confirm certification directly if fire protection is a deciding factor for your operation.

Learn More

Lock Type & Access Options

Access at this tier is controlled through your choice of lock: a combination dial, a key-locking spy-proof dial, or an electronic keypad with time-delay capability. Time-delay locks add a mandatory waiting period between entering the code and the bolts releasing, which is standard practice for bank and jewelry vault access rather than a residential or light-commercial feature. That delay is often a specific insurance or operational requirement, not just an added convenience.

Highlight

Adjustable shelving from one to four shelves depending on size lets you configure the interior for jewelry drawers, cash trays, or other organized storage as your inventory changes.

Learn More

Interior Storage, Shelving & Organization

Opening this safe day to day looks the same regardless of size: a lock sequence, a time-delay wait on the electronic options, then access to a shelved interior you have configured for jewelry, cash trays, or whatever your operation stores. The adjustable shelving means the layout can change as your inventory does, without needing a different safe. For most accounts, the interior gets reorganized more often than the exterior ever gets touched.

Installation, Placement & Bolting Down

Installation planning often determines long-term satisfaction. At this weight class, ranging from roughly 1,400 pounds on the smallest configuration to over 4,500 pounds on the largest, floor load capacity is the first question, followed by doorway clearance and whether the delivery route requires a freight elevator or ground-level access. Our crews assess the path from delivery vehicle to final placement before the safe leaves the warehouse, since a safe this size cannot be rerouted mid-delivery the way a smaller unit can. We also coordinate after-hours delivery when a jewelry store or bank needs the install to happen outside business hours.

One of the simplest ways to increase resistance is proper anchoring.

Highlight

Our crews plan floor load and access before delivery, since these units run from roughly 1,400 to over 4,500 pounds depending on size.

Two workers guide a shrink-wrapped safe on a skid steer beside a house on a dirt lot

Is This Protection Level Enough for Your Situation?

UL TL-30x6 Protection on Every Side, Not Just the Door

Step Up If:If your operation grows into a dedicated vault room rather than a single safe, that is when a commercial vault door becomes the next conversation, since it changes the entire security architecture of the space rather than just the container.

More Than Needed If:If your coverage requirement is satisfied by a front-rated TL-30 or TL-15 standard, a lighter model in our commercial TL lineup will meet that requirement at a lower installed cost and weight.

Frequently Asked Questions

UL TL-30x6 means every side of the safe, not just the door, resists a sustained tool attack. Most commercial safes are rated on the door alone, so a crew that tips the safe bypasses that rating. In our evaluations, six-sided certification is what separates a real vault from a heavy box with a good lock.

Yes, and it is more common than most business owners expect. Crews that cannot beat a certified door will tip the safe and attack the thinner, unrated back or top instead, exactly the gap a front-only rating leaves open. We see this most in burglaries where the safe was never anchored to the floor.

An independent lab attacks all six sides with the same tool set: drills, saws, grinders, and prying tools, for 30 minutes each. The safe must resist entry on every side to earn the x6 designation, not just on average or on the door alone. That is why a TL-30x6 rated safe costs and weighs more than a front-only TL-30 model.

It takes a floor load assessment before delivery, since these models run from roughly 1,400 to over 4,500 pounds. Doorway clearance, delivery route, and freight elevator or ground-level access all get confirmed ahead of the install date. Our crews plan that path before the safe leaves the warehouse, since a unit this heavy cannot be rerouted mid-delivery.

You need TL-30x6 when your carrier's coverage requires six-sided certified resistance, not just a certified door. A standard TL-30 rating covers the front only, which is enough for many commercial risk classes but not for jewelers or banks carrying irreplaceable assets. What we tell business owners is to check the exact wording of their carrier's requirement first.
